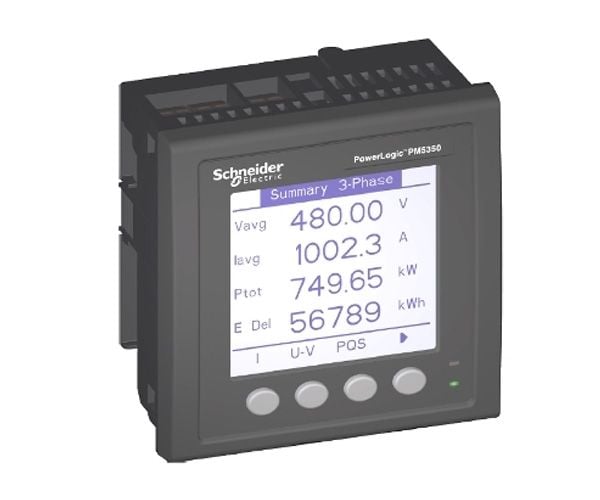

ĐỒNG HỒ ĐO ĐIỆN ĐA NĂNG SCHNEIDER PM5350

power quality analysis

up to the 31st harmonic

device application

Power monitoring
Multi-tariff

type of measurement

Current
Voltage
Frequency
Power factor
Energy
Active and reactive power

supply voltage

100...415 V AC 45...65 Hz
125...250 V DC

network frequency

50 Hz
60 Hz

[In] rated current

1 A
5 A

type of network

3P + N
3P
1P + N

maximum power consumption in VA

10 VA at 415 V

ride-through time

80 ms 120 V AC typical
100 ms 230 V AC typical
100 ms 415 V AC typical

display type

Backlit LCD

display resolution

128 x 128 pixels

sampling rate

64 samples/cycle

measurement current

10…9000 mA

analogue input type

Voltage (impedance 5 MOhm)
Current (impedance 0.3 MOhm)

measurement voltage

35…690 V AC 45...65 Hz between phases
20…400 V AC 45...65 Hz between phase and neutral

frequency measurement range

45…65 Hz

number of inputs

2 digital

measurement accuracy

Active energy +/- 0.5 %
Reactive energy +/- 2 %
Active power +/- 0.5 %
Apparent power +/- 0.5 %
Frequency +/- 0.05 %
Power factor +/- 0.005 %
Current +/- 0.5 %
Voltage +/- 0.5 %

accuracy class

Class 0.5S active energy conforming to IEC 62053-22

number of outputs

2 relay
2 digital

information displayed

Tariff (4)

communication port protocol

Modbus RTU and ASCII at 9.6, 19.2 and 38.4 kbauds even/odd or none - 2 wires, insulation 2500 V
JBUS

communication port support

RS485

data recording

Maintenance logs
Time stamping
Alarm logs
Data logs
Min/max of instantaneous values
Event logs

memory capacity

256 kB

connections - terminals

Voltage circuit: screw terminal block4
Control circuit: screw terminal block2
Current transformer: screw terminal block6
Input/output circuit: screw terminal block6
Relay output: screw terminal block4
Ethernet network: RJ45 connector

mounting mode

Flush-mounted

mounting support

Framework
